High Performance Snap-Fan Line, packed with more power and features than our other fans of the same size.

High efficiency industrial grade EC Motor
Specifically designed to operate solar direct on a 24-volt solar panel or battery
2 Speeds – 50%/100% No controller required
Accepts 0-10V control for continuously variable speed control
Water resistant motor made in USA with IP54 rated protection
Includes liquid tight conduit and five foot long wire leads
Soft start, thermal roll back and locked rotor protection are standard features
Highest quality materials with an innovative design creates an efficient and quiet fan
All parts replaceable and/or serviceable
High Performance – 91% higher CFM than standard 16” AC Snap-Fan

120V/240V/277V
Variable Speed Controllers available:
Single Zone EC Controller
Multi Zone EC Controller

TECHNICAL DETAILS:

Spec Sheet

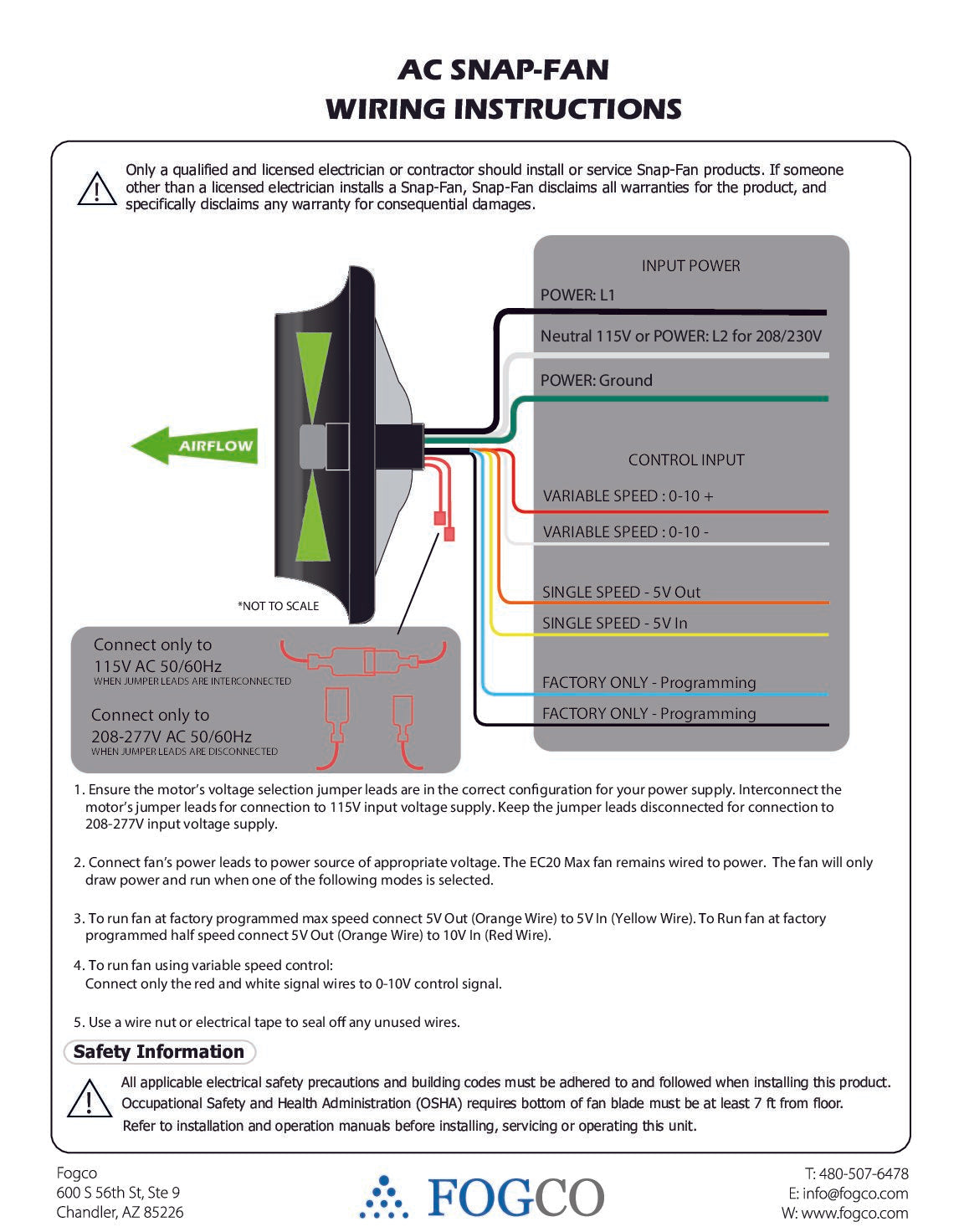

Wire Diagram

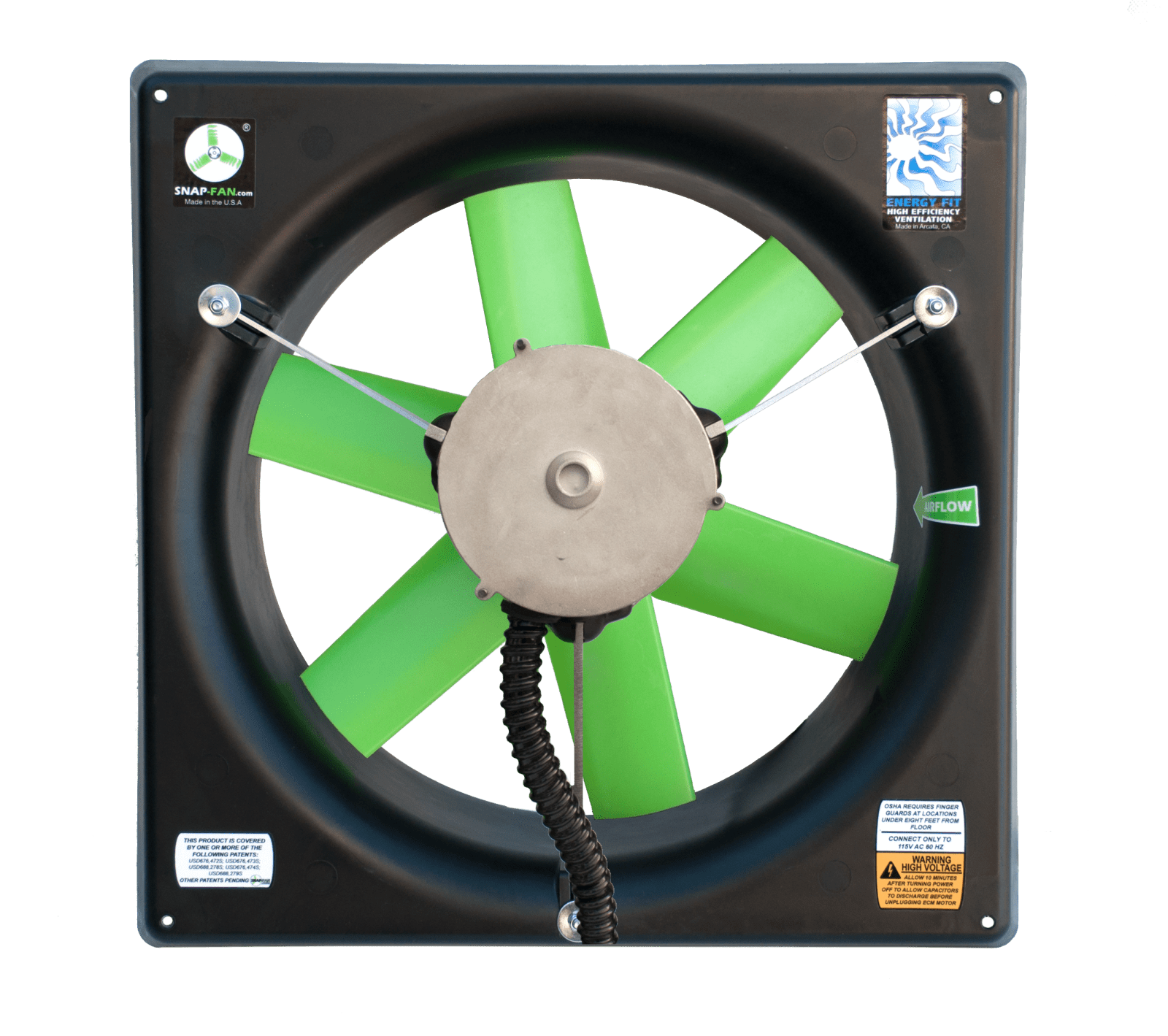

16″ HP AC Snap-Fan
