BRUSHLESS EC HAF

4,370 thrust CFM tested at BESS
4 lbs thrust 280 watt at 80% Duty Cycle
High efficiency industrial grade Brushless Servo Motor
Motor made in USA. Water resistant, O-ring seals, IP54
Programmable motor can be set to run at a discreet speed from 350-1800 RPM and/or 0-10v controlled variable speed
Soft start, thermal roll back and locked rotor protection are standard features
Includes liquid tight conduit 5ft lead wires
Low vibration mounting system reduces noise
Glass reinforced polypropylene airfoil blade offers high efficiency and expanded air throw profile
Efficient deep basket design increase performance
Rugged power coated corrosion resistant basket
Includes hanging fan mount

Variable Speed Controllers available:
Single Zone EC Controller
Multi Zone EC Controller

TECHNICAL DETAILS:
Spec Sheet

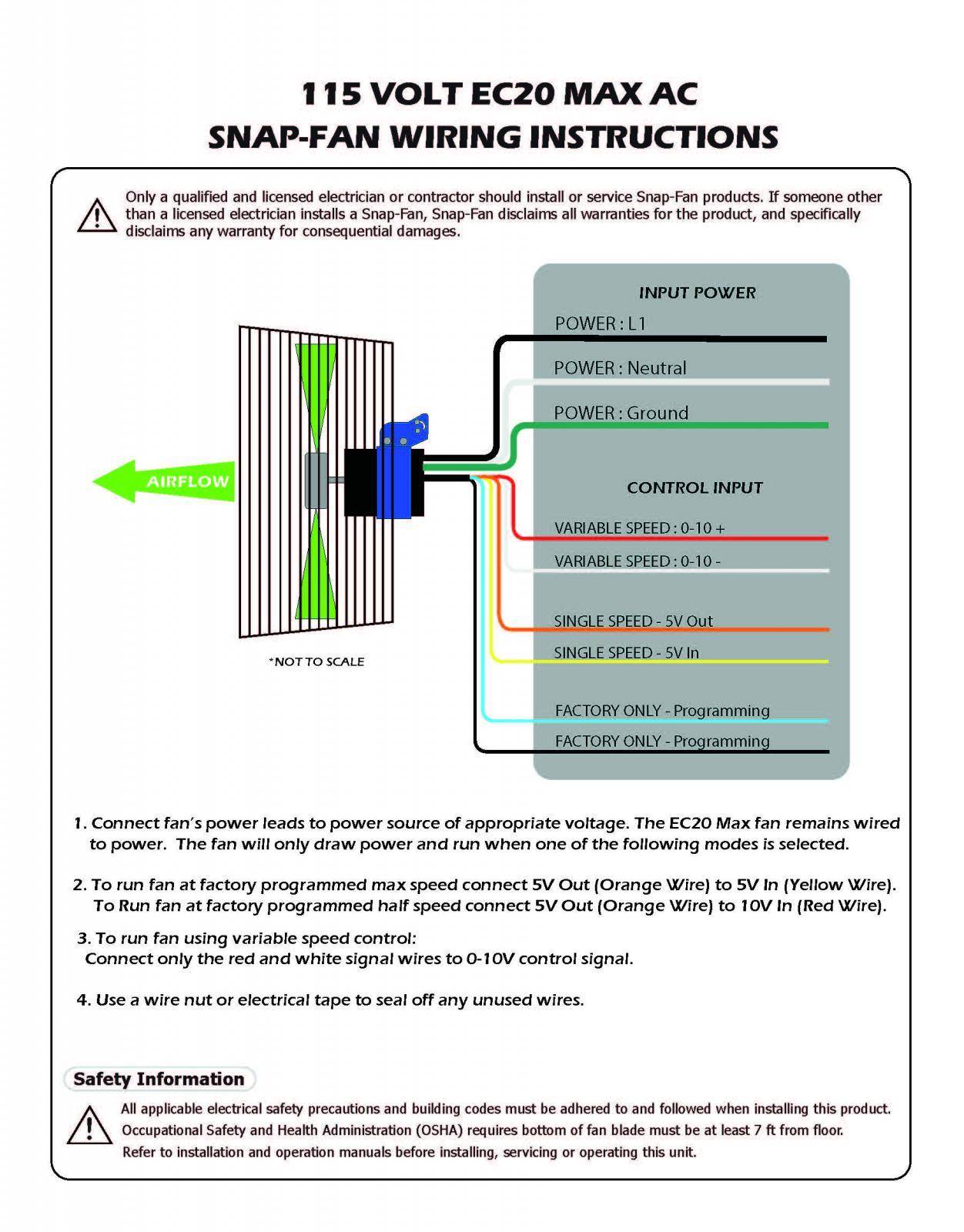

Wire Diagram

Weight	30 lbs
Dimensions	16 × 25 × 25 in
Voltage Options	115V, 208-277V

AC EC20 MAX BRUSHLESS
